Car Aluminum

Alloy: 5052, 5182, 5754, 6016, 6014, 6111

Temper: O, H32, T4, T6

Thickness: 0.5-600mm

Width: 20-2600mm

Application: Car manufacturing

Request A Quote
  • Introduction
  • Feature
  • Advantages
  • Pictures
  • Download

Car aluminum, also called automotive aluminum, is an aluminum alloy material used in automobiles. Automotive aluminum used in engines can reduce weight by 30%, aluminum body is 40% lighter than steel products, and aluminum wheels can reduce weight by about 30%.

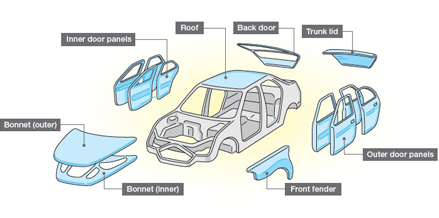

Automotive applications do not have the luxury of being pressurized, so panels need to be stamped from higher-strength alloys having a thickness typically greater than 1,000 microns (0.040 in.). AA5182 is used throughout the body structure, along with other grades from the 5XXX family. Although this grade provides the necessary strength, it cannot be used for skin panels because it is prone to stretcher-strain marks or Lüders lines, which print through a painted surface.



Products formed from the 6XXX series are not plagued by these visually unappealing features and have the added bonus of getting stronger when processed through a paint-curing cycle. This characteristic helps increase vehicle exterior denting resistance. Typical alloys from this family have additions of 0.75 percent Mg and 0.75 percent silicon (Si).

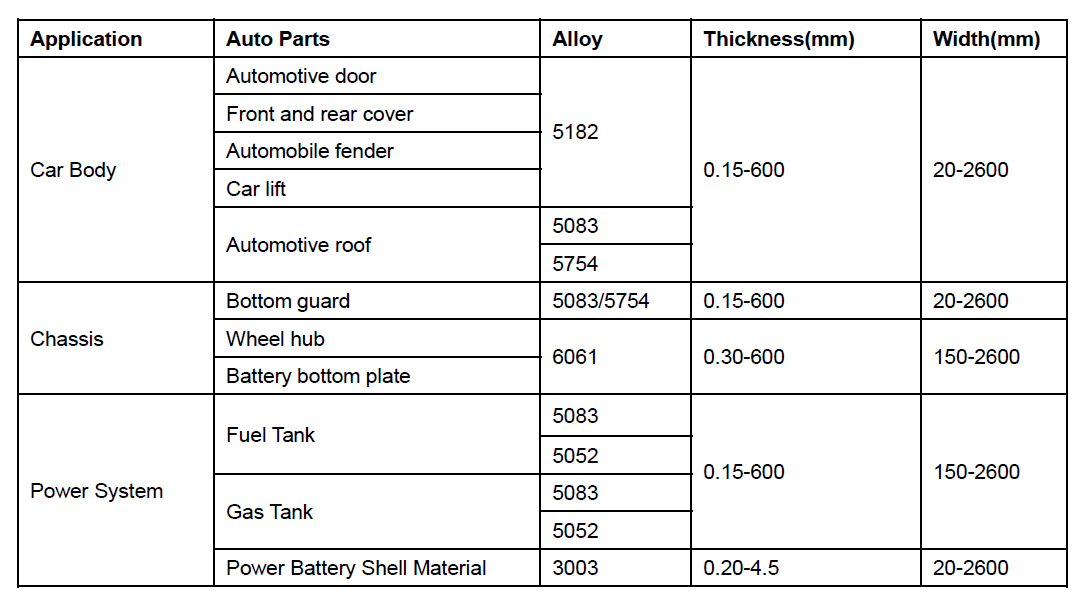

The Specification of Car Aluminum are:

aluminium for car body

car aluminum

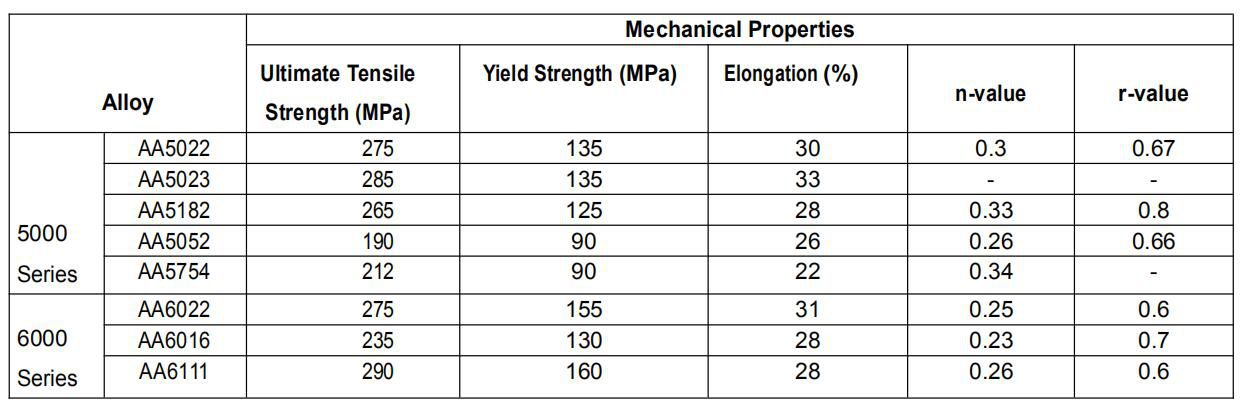

The Properties of Aluminium Alloy for Car Body are:

aluminum for car body

aluminium alloy for car body

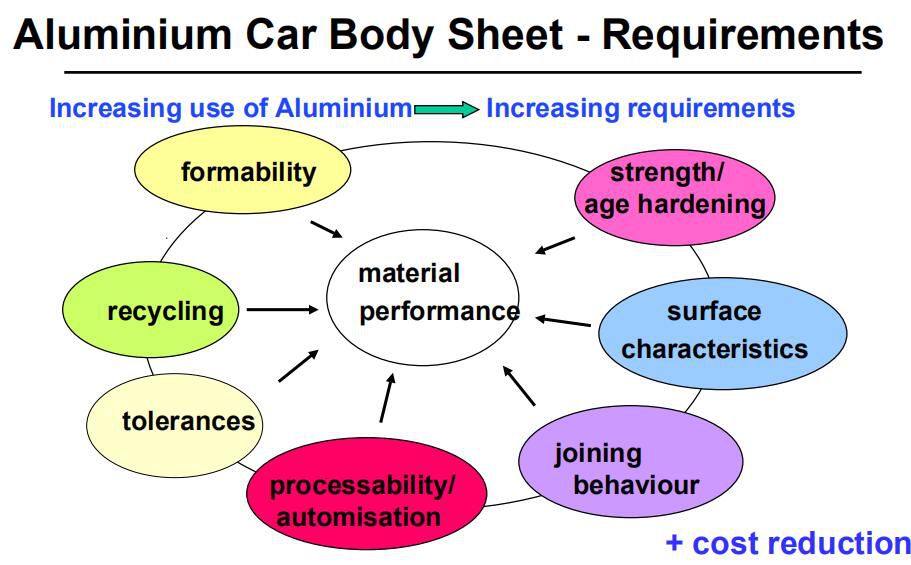

Why do Aluminium Alloy Used in Car?

It has been more than 130 years since the birth of the automobile. In the development process of more than a century, fuel saving has always been the direction of the efforts of automobile developers. Among them, work hard on light weight, which is an effective way to save fuel.


According to industry statistics, if the overall weight of the car is reduced by 10%, it can save 6% -8% of fuel, reduce fuel consumption by 0.3-0.6 liters per 100 kilometers, and reduce carbon oxide emissions by 5-8g. This is all thanks to automotive aluminum made from aluminum alloys.

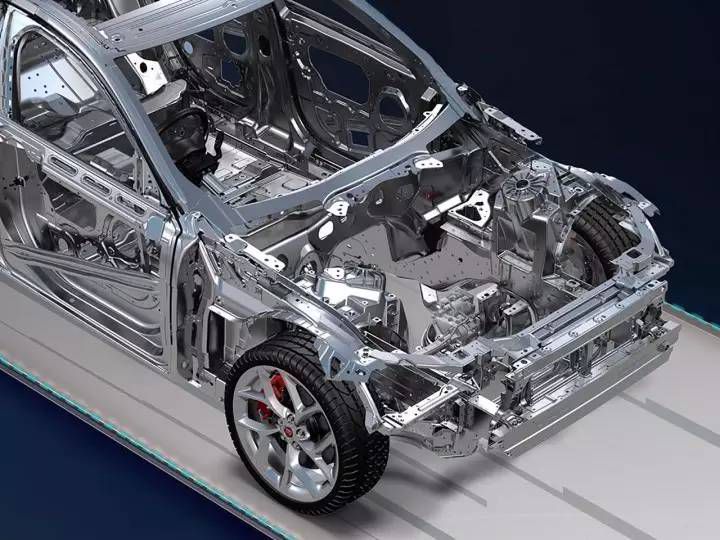

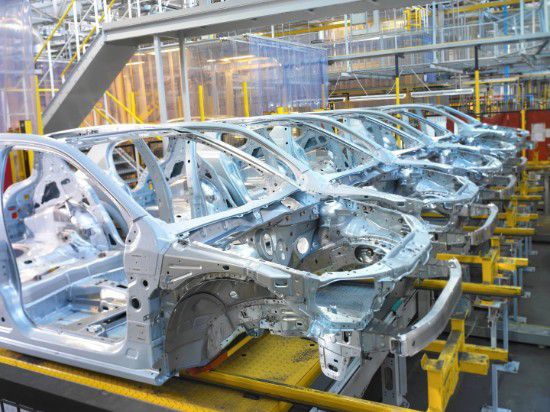

Automotive lightweight materials are divided into two major categories of metals and non-metals. Metal materials mainly include high-strength steel and aluminum alloys, magnesium alloys and so on. Among them, car aluminum has many advantages. Its density is 1/3 of steel; it has good extensibility, corrosion resistance and easy recycling; and it has good castability and can be processed into different shapes. It is currently one of the popular lightweight materials. Many models currently use all-aluminum bodies.

aluminium alloy used in cars

aluminium used in cars


car aluminium

aluminum alloy for car body
